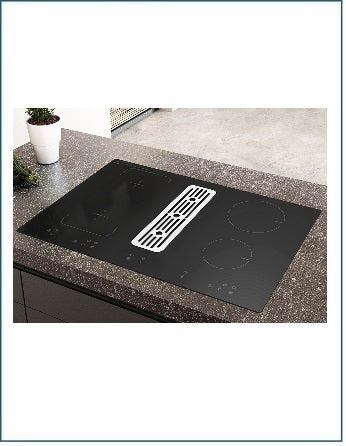

Downdraft hood and 4 Ring Induction Hob P154XINDH

Downdraft hood and 4 Ring Induction Hob

User Manual & Install Guide

Cooker Hood

• Ducted or Re-circulated Installation
• Recycle Carbon Filter & dishwasher Safe Aluminium Grease Filter included
• Number of Motors 1
• Max.Motor Power in W 100
• Free Airflow c.pty.: exhaust (max) m³/h 700
• ERP Airflow c.pty.: exhaust (max) m³/h 475
• Energy class Rating B
• Noise level dB(A) 69
• Appliance Dimension (without Chimney Pipe) W/D/H mm 800x520x62
• Type of Switch Rocker/slider/push Buttons Touch control
• Hard wired cable.
• Packing dimensions W X D X H mm 905*605*485
• Gross Weight kg 14.5/16.5
• Voltage/Frequency 220~240/50
• Input Power in W 100

Induction hob

• Numbers of sensors 9
• Front (left) zone induction φ180
• Front (left) zone Power 2000W
• (Rear) Left zone induction φ140
• (Rear) Left zone power 1500W
• Rear(right) zone induction φ180
• Rear (right) zone power 2000W
• (Front) right zone induction φ140
• (Front) right zone Power 1500W
• Power Stage Setting 0-9
• Digital Timer Setting 0-99min
• Child Lock Function
• Residual Heat Indicator
• Automatic shut off mechanism
• ROHS/CE approved yes

2 Year Parts & Labour Guarantee

EAN Code 5391503416432

Model Number P154XINDH
